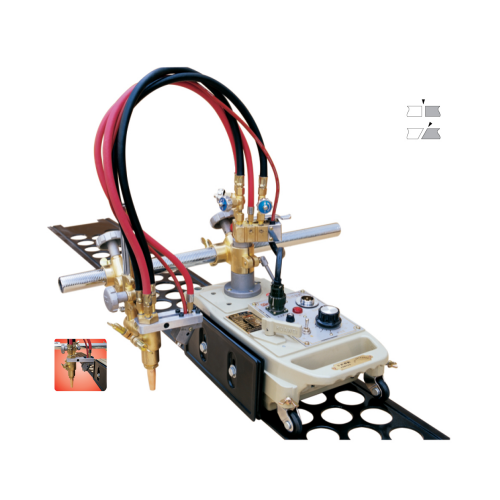

Portable Auto-Ignition Flame Cutter Machine For Thick Steel Sheet Cutting

Introduction

“CG1-30H-D” portable gas cutter is the new product developed by our Company. The internal structure of the machine is designed properly and the appearance surface is designed in a good taste. We improve many technology and craft under the guidance of the customers. Because of using the new material and strict process technology of part, the operability and durability and heat-insulating property have big advances. And it has self-ignition function.

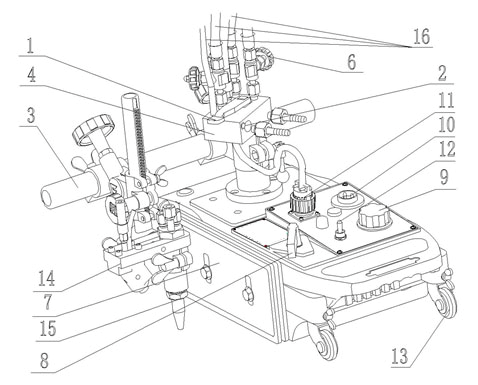

Structure

1. Lighter hand knob

It will burst flame when push down the hand Knob and the flame can ignite the tip. The flame can self-crush out after releasing the hand knob.

2. Flameout switch: Pushing down the switch will close preheating oxygen and fuel gas.

3. Traversing gear rack

4. Gas distributor

5. Traversing hand wheel

6. Fuel gas two-port valve: Modulate the bulk of the gas-flow rate

7.Thermal baffle: Prevent the heat from diffusing into the machine.

8. Clutch hand knob

9. Velocity modulation hand wheel: Modulate the speed of travel of the machine.

10.Power outlet

11. Preheating oxygen valve

12.Motor.Backward/Forword conversion switch

13. Universal wheel

14. Lead flame tip

15.Tip

16.The hose transported the gas

Technical parameters

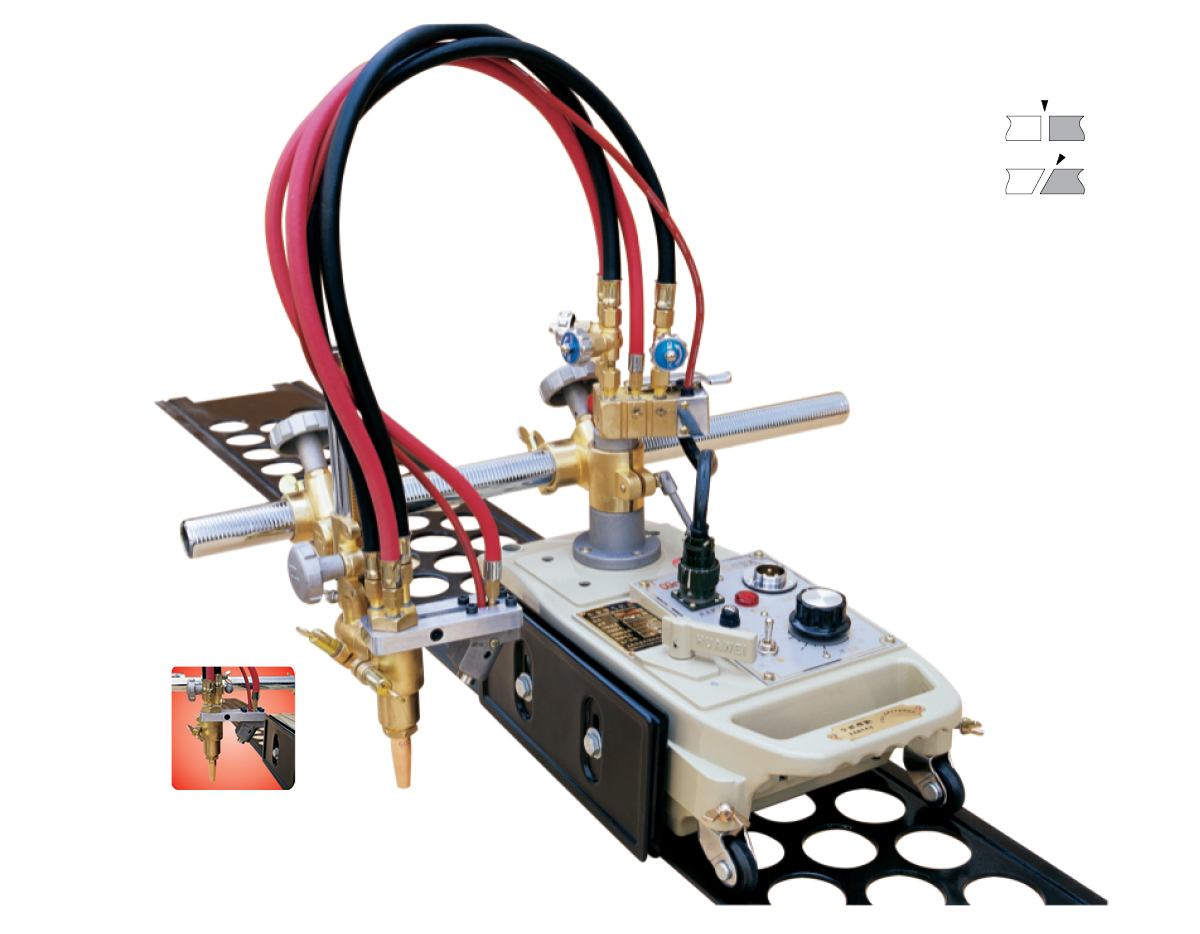

Picture for reference
