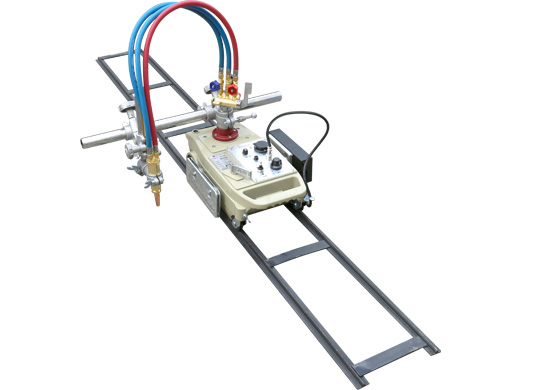

Battery Power Portable Flame Gas Cutter Machine For 100mm Thick Carbon Steel Workpiece Cutting

Introduction

“CG1-30C”portable gas cutter is the new product developed of our Company. The internal structure of the machine designed proper and the appearance surface designed in a good taste. We improve many technology and craft under the guidance of the customers. Because using the new material and request the processing technical strictly, the operability and durability and heat-insulating property have big advance.

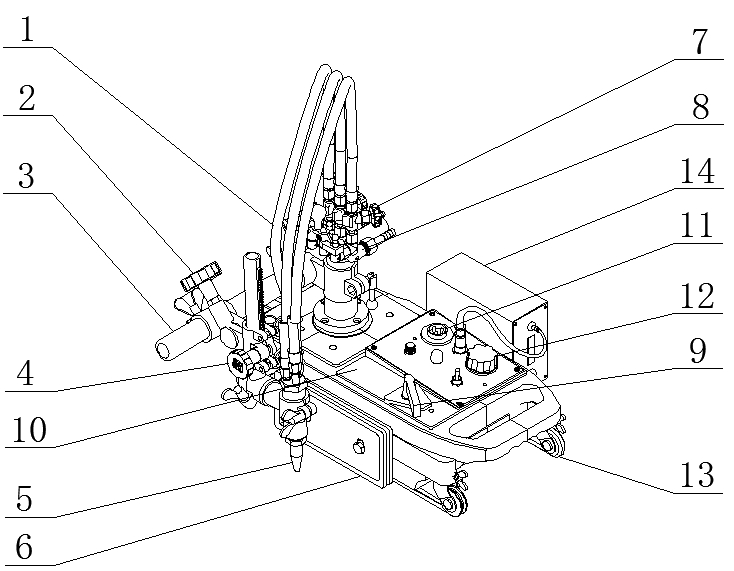

Structure

1. Hose: The three hoses are used individually for fuel gas, preheating oxygen and cutting oxygen.

2. Cross hand wheel: To adjust the horizontal distance of torch

3. Cross gear rack

4. Vertical adjusting hand wheel of torch

5. Tip

6. Thermal baffle: To prevent the heat diffusing into the inner of machine.

7. Fuel gas two-port valve: To adjust gas-flow rate.

8. Gas distributor.

9. Clutch hand knob: “STOP” is parting. “START”is combination

10. Body

11. Speed controller: Increase the speed from “0” to “10”Decease speed from “10” to “0”.

12. Outlet

13. Universal wheel

14. Lithium battery

Technical parameter

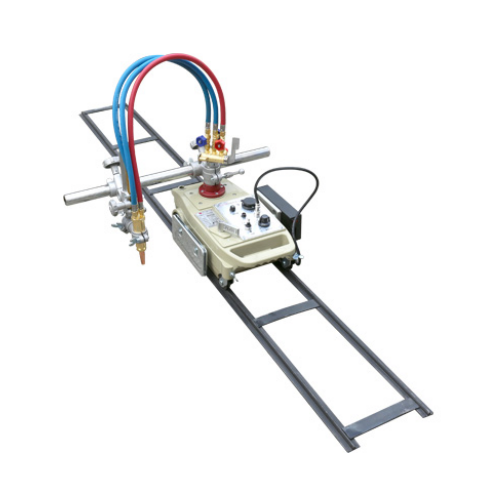

Picture for reference
