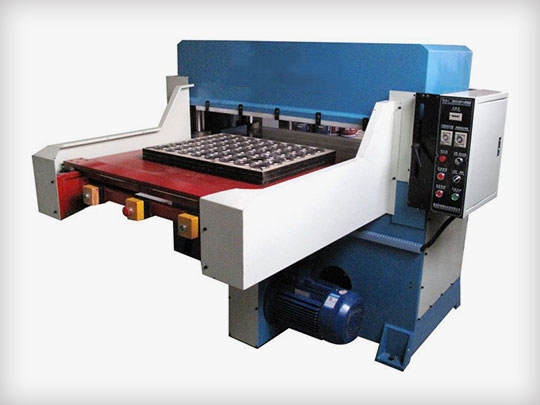

Single-station Four-column Cutting Machine For Plastic Cup Cutting

Introduction

This machine is mainly suitable for cutting thick materials with high grinding tools such as plastic cups, cake boxes, sponge electronic brushes, scouring pads and sponges, and thick plastic products.

Features

• This machine is suitable for continuous punching of multiple or single layers of sheet materials. For example, it can be applied in industries such as vacuum forming, foam, flooring, and felt.

• Double oil cylinders, precise four-column automatic balance double connecting rod mechanism, ensuring that the cutting depth accuracy at each cutting position is ±0.1mm.

• When the cutting head is pressed down, it automatically slows down 10mm before touching the cutting knife. With two-stage pressure application, when the upper working plate is pressed down to the cutting knife, it switches to flexible cutting, ensuring that there is no dimensional error between the top and bottom layers when cutting multiple layers of materials.

• Due to the balance of the cutting, the wear and tear of the die and the cutting plate can be greatly reduced, the cutting edge has a better effect, and the consumption of the cutting plate can be further reduced.

• Unique setting structure, in combination with the cutting knife and cutting height. Make the stroke adjustment simple and accurate.

• The single-sided automatic feeding mechanism and automatic lubrication system, controlled by PLC computer touch screen program, are easy to operate, have a low failure rate, strong cutting force, and can greatly improve work efficiency.

• It is equipped with a tool rest to fix the tool mold, making it easy to replace and remove, and providing a wide field of vision.

• The microcomputer control system can store multiple sets of memory according to the required die shape for work. When changing the die, there is no need to reset the die setting. [Options]

• It adopts imported hydraulic systems and is equipped with electrical appliances from Taiwan and Japan, which saves electricity, generates low noise, is easy to operate and can efficiently improve work efficiency.

• The cutting work area is equipped with a safety light curtain protection device and meets CE safety standards to ensure operational safety.

• The central automatic lubrication system eliminates the concern of machine parts being damaged due to manual negligence in oiling. The specially designed external oil circuit system is equipped with a water cooler [optional], ensuring thorough heat dissipation and effectively maintaining the blanking force, making the entire machine more durable.

• The surface of the machine is treated with high-temperature electrostatic spraying (secondary processing to reduce deformation), and traditional manual painting is not used.

Technical parameters

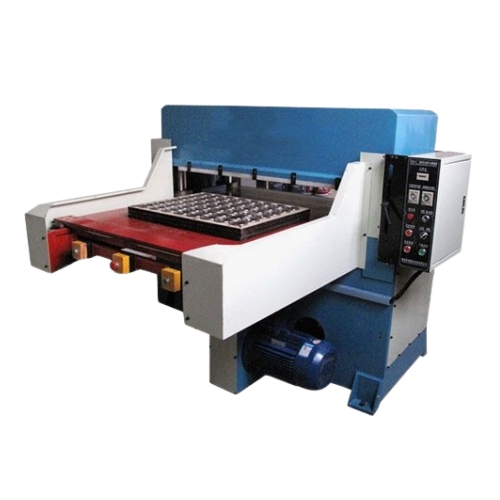

Picture for reference
