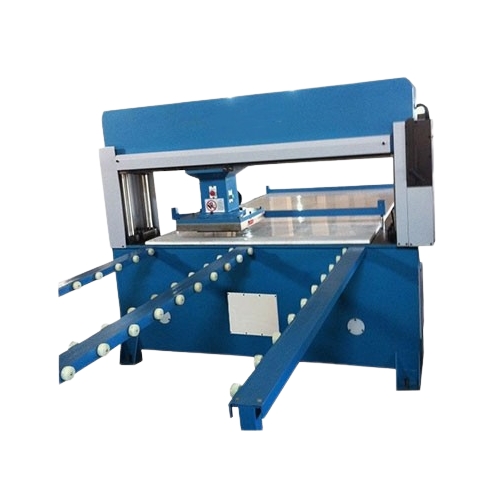

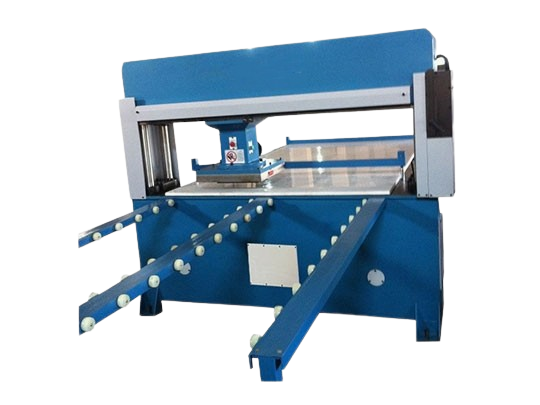

Automatic Multi-layer Sheet Material Precision Four Column Beam Cutting Machine With Gantry For Football Making

Introduction

This machine is mainly suitable for continuous blanking operations of non-metallic sheet-like multi-layer materials of the same specification and in large quantities by forming die-cutting molds. For example, it can be applied in industries such as facial masks, powder puffs, artificial flowers, footballs, volleyballs, tennis balls, sandpaper, medicine, and festive paper-cutting.

Features

• Double oil cylinders and a precise four-column double-link automatic balancing mechanism ensure that the cutting depth accuracy at each cutting position is 0.2mm

• This machine is suitable for continuous blanking operations of non-metallic coil materials of the same specification and in large quantities using forming dies. For example, it can be applied in industries such as artificial flowers, facial masks, footballs, volleyballs, tennis balls, sandpaper, and pharmaceuticals.

• The microcomputer controls the coordinated movement of the lateral movement axis and the feeding axis of the machine, enabling the machine to automatically complete the blanking action of the material. Moreover, the displacement distance of the punch and the feeding length can be set, which greatly reduces the loss of scraps and saves nearly 10% of raw materials.

• The machine has multiple working modes such as point operation, manual operation and automatic operation. Workers only need to pick up finished materials, which reduces labor intensity and improves work efficiency.

• The machine is equipped with blanking modes such as misalignment, misalignment reduction of the tool, and die rotation, which can retrieve materials and significantly reduce material consumption.

• The central automatic lubrication system ensures machine accuracy and enhances its durability.

• As this machine is controlled by a microcomputer and has a high degree of automation, only one worker is needed for the entire machine. The production efficiency can be increased by 4 to 5 times and nearly one-third of the electricity can be saved.

• The unique setting mechanism, in combination with the cutting knife and the setting of the cutting height, makes the stroke adjustment convenient and accurate. Optional accessories: Single-axis and dual-axis options are available. Special specifications can be customized.

Technical parameter
