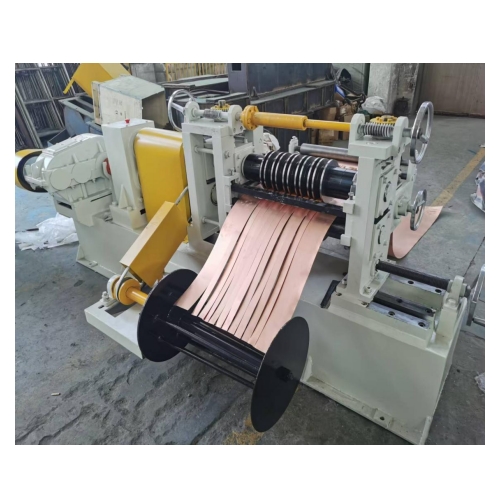

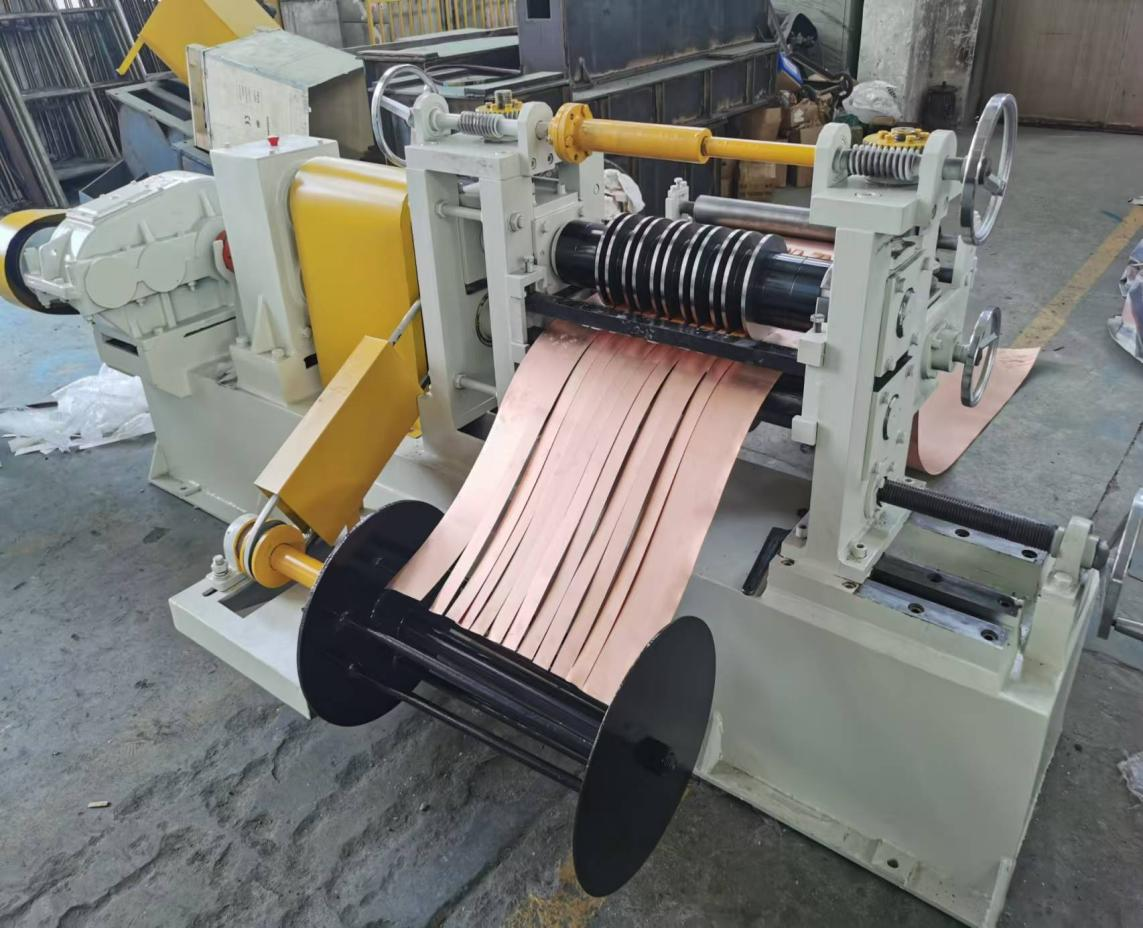

850mm Automatic Steel Slitting Machine

Technical parameter

Applicable materials: Steel coils

l Material thickness: 0.24-0.25mm

l Material width: 610-810 (Max)

l Inner diameter of steel coil: φ420-506mm

l Outer diameter of steel coil: φ 1000mm (Max)

l Steel coil weight: ≤3T (Max)

l Longitudinal scissor shaft diameter: φ130

Finished product parameters

l Width accuracy: ≤± 0.05mm

l Maximum number of cuts: Generally less than 12. (For thin materials, the number of strips can be increased

Other parameters of the equipment

l Power Supply: 380V/50Hz

l Linear speed: 10-60 m/min (adjustable from thick to thin)

l Installed capacity: Approximately 40kw

l Production line floor area (approximately): 14m in length X 4m in width

l Production operators: 1 technical worker and 1 general worker

l Production line direction: From right to left (the operation console faces the unit) (right feeding direction)

l Equipment color: Off-white (customizable)
